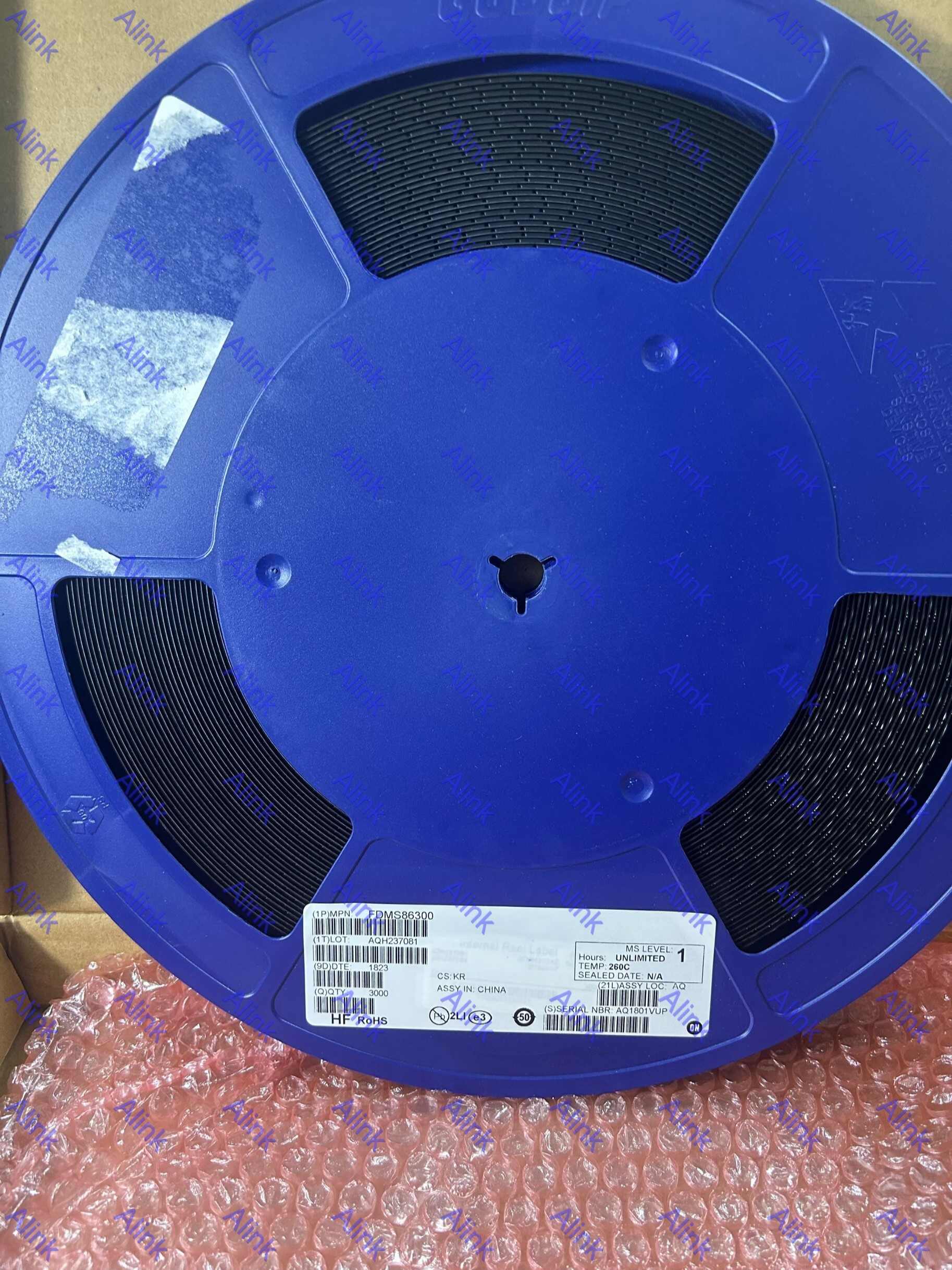

Mfr. #:
FDMS86300
Mfr.:onsemi / Fairchild
Description:
MOSFET 80V N-Channel PowerTrench MOSFET
FDMS86300
Mfr.:onsemi / Fairchild
Description:
MOSFET 80V N-Channel PowerTrench MOSFET
FDMS86300
| Product Attribute | Attribute Value | Select Attribute |
|---|---|---|
| onsemi | ||
| Product Category: | MOSFET | |
| RoHS: | Details | |
| Si | ||
| SMD/SMT | ||
| Power-56-8 | ||
| N-Channel | ||
| 1 Channel | ||
| 80 V | ||
| 42 A | ||
| 5.5 mOhms | ||
| - 20 V, + 20 V | ||
| 3.4 V | ||
| 59 nC | ||
| - 55 C | ||
| + 150 C | ||
| 104 W | ||
| Enhancement | ||
| PowerTrench | ||
| FDMS86300 | ||
| Reel | ||
| Cut Tape | ||
| MouseReel | ||
| Brand: | onsemi / Fairchild | |
| Configuration: | Single | |
| Fall Time: | 9 ns | |
| Forward Transconductance - Min: | 60 S | |
| Height: | 1.1 mm | |
| Length: | 6 mm | |
| Product Type: | MOSFET | |
| Rise Time: | 26 ns | |
| 3000 | ||
| Subcategory: | MOSFETs | |
| Transistor Type: | 1 N-Channel | |
| Typical Turn-Off Delay Time: | 36 ns | |
| Typical Turn-On Delay Time: | 31 ns | |
| Width: | 5 mm | |
| Unit Weight: | 0.002402 oz |
